Radiography & Fluoroscopy (digital) X-ray system

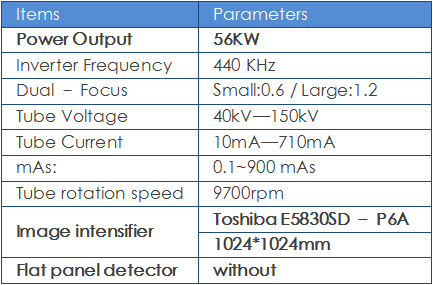

PLD5500A

Digital Fluoroscopy Machine

Table model: ZDC20

Bed rotation range: 90°~ 0°~ -25°

Lateral moving range of bed surface: 220mm

Vertical movement of X-ray tube column: 720mm

SID（Distance from focus to Film）: 1100-1500mm

360°Rotary pedal

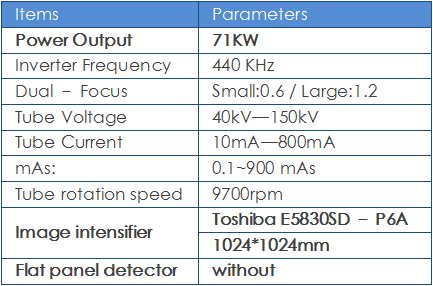

PLD6600A

Digital Fluoroscopy Machine

Table model: ZDC20

Bed rotation range: 90°~ 0°~ -25°

Lateral moving range of bed surface: 220mm

Vertical movement of X-ray tube column: 720mm

SID（Distance from focus to Film）: 1100-1500mm

360°Rotary pedal

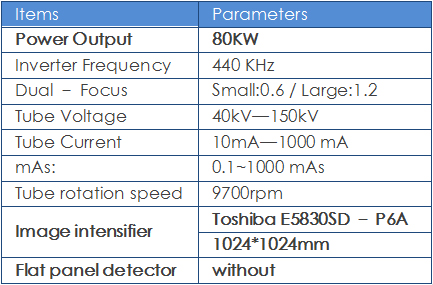

PLD8600A

Digital Fluoroscopy Machine

Table model: ZDC20

Bed rotation range: 90°~ 0°~ -25°

Lateral moving range of bed surface: 220mm

Vertical movement of X-ray tube column: 720mm

SID（Distance from focus to Film）: 1100-1500mm

360°Rotary pedal
